Fenix HM75R SUPERRAPTOR 3 Headlamp. The new Fenix HM75R SUPERRAPTOR 3 is a versatile and powerful headlamp. It boasts up to 194 hours of runtime, 1600 lumens of brightness, and a beam distance of 218 meters. The lamp features separate spot and flood lights, a combination mode, and a red light to preserve night vision. It offers two intelligent energy modes and four brightness levels, making it suitable for demanding recreational and professional use. The SUPERRAPTOR 3 is fully IP68 rated and made from ultra-lightweight magnesium. HM75R SUPERRAPTOR 3 is the ideal choice for those who demand the best in lighting, extended runtime, and top-notch performance.
For extended use during long treks, you can add the HM75R SUPERRAPTOR 3 POWER EXTENDER battery pack (inquire at armyshop@us-eagle.fi).
HM75R SUPERRAPTOR 3 is an efficient headlamp crafted from ultra-lightweight magnesium, providing up to 194 hours of runtime, 1600 lumens of brightness, and a beam distance of 218 meters. It features separate spot and flood lights along with a red light to retain night vision. Users can select optimal lighting between two energy modes and four brightness levels. HM75R SUPERRAPTOR 3 is the choice for users needing a versatile and performance-driven headlamp with long runtime for both demanding recreational and professional use.
Design from Finland Product
The Fenix HM75R SUPERRAPTOR 3 has received the Design from Finland mark from the Association for Finnish Work. This mark indicates that SUPERRAPTOR 3 is professionally, responsibly, and user-oriented designed in Finland. Responsible design is evident in the durability, usability, material choices, and repairability of the lamp. By choosing a Design from Finland product, you support Finnish work.
The HM75R SUPERRAPTOR 3, designed in Finland, was developed based on ideas and wishes from thousands of our users. After more than two years and over three thousand hours of product development, tested in the harsh conditions of Finland's nature, we proudly claim that the HM75R SUPERRAPTOR 3 is one of the best and highest-performing headlamps in its class.
Perfect Illumination for All Distances
One of the headlamp's most demanding features is its ability to illuminate broadly while also reaching far. Unlike many competing headlamps that use plastic combination lenses, the HM75R SUPERRAPTOR 3 features two separate hardened glass, optically polished lenses that produce accurate and efficient spot lighting up to 218 meters and a very wide flood light that effectively reaches long distances as well. The secret of the effective floodlight lies in two LED emitters that deliver maximum brightness of 1600 lumens. The spot and flood lights can also operate simultaneously, providing an effective and expansive beam without compromise across the entire range.
Red Light Preserving Night Vision
For the first time, the HM75R SUPERRAPTOR 3 features a red light that preserves night vision. The red light includes settings for tactical military and agency use, as well as modes suitable for hunting, photography, or wildlife observation with 30-lumen and 120-lumen options.
Easy and Quick to Use, Even with Gloves
In designing the HM75R SUPERRAPTOR 3, we paid special attention to its quick and easy usability while wearing gloves, particularly in cold conditions where button navigation can be tricky or even impossible. We use a new mechanical rotary switch on the SUPERRAPTOR 3, allowing users to select between operational modes (spotlight, floodlight, combination) by rotating the switch. Brightness levels can be easily chosen from a touch switch located at the end of the rotary switch. The brightness level is automatically saved, making it easy to switch between modes without needing to adjust brightness levels separately.
Two Intelligent Energy Modes
The HM75R SUPERRAPTOR 3 features two energy modes: a) energy-saving mode and b) power mode, which determine how the battery's energy is utilized. Energy-saving mode (default setting) extends the lamp's continuous runtime by prioritizing duration over constant high brightness. Power mode allows for prolonged use of light at a higher brightness, ideal for situations where brightness is more crucial than runtime.
Intelligent Brightness Reduction Function
The HM75R SUPERRAPTOR 3 features an intelligent automatic brightness reduction function that prevents high temperatures from occurring during close-range illumination. Brightness is automatically reduced if an object is near the hot lens.
Can Be Used as a Headlamp, Helmet Light, and Bike Light
The HM75R SUPERRAPTOR 3 opens up even more versatile usage possibilities. With the included exclusive GoPro mount, you can attach the lamp to any GoPro-compatible mounts, such as a bike or helmet. Additionally, with separately available Fenix ALG-03 V2.0 and ALG-04 NVG helmet mounts, you can fasten the lamp to cycling, work, climbing, or tactical helmets. Switching between various mounts is hassle-free, as all headlamp straps are quick-release.
No Expensive Special Batteries
The HM75R SUPERRAPTOR 3 comes standard with a powerful and safe 3500 mAh 18650 Fenix ARB-L18 battery, ensuring long runtime and reliable performance in all conditions.
Extended Runtime with HM75R POWER EXTENDER
We have designed an exclusive 5000 mAh POWER EXTENDER backup power source for the HM75R SUPERRAPTOR 3. With this special backup power supply, you can multiply the headlamp's continuous runtime up to 447 hours (at the lowest brightness)! The backup power supply can be conveniently attached to the headlamp's headband (40 cm cable) or to a backpack with the included one-meter cable. Additionally, this power source also serves as an effective power backup for all USB-C rechargeable electronic devices, such as phones, GPS navigators, etc. Inquire at armyshop@us-eagle.fi.
Product Information
Standard power level circuit maintains brightness even longer.
1600 lumens maximum brightness.
218 meters maximum beam distance.
194 hours maximum runtime (lowest brightness).
Spot, flood, and combination lighting to meet diverse illumination needs in various situations.
Rotary switch and electronic control for easy and quick access, even while wearing gloves.
Two energy modes: a) Energy-saving (default): extends runtime providing longer use time, b) Power mode: allows for longer light usage at higher brightness.
Intelligent automatic brightness reduction function prevents high temperatures during close illumination.
Last usage mode memory function.
USB C charging.
Made from ultra-lightweight magnesium (light assembly).
Compatible with GoPro mounts (includes GoPro mount).
Internal waterproof USB-C charging port for fast and easy charging.
Replaceable Li-ion battery pack (includes high-capacity 3500 mAh battery), can also use two CR123A batteries.

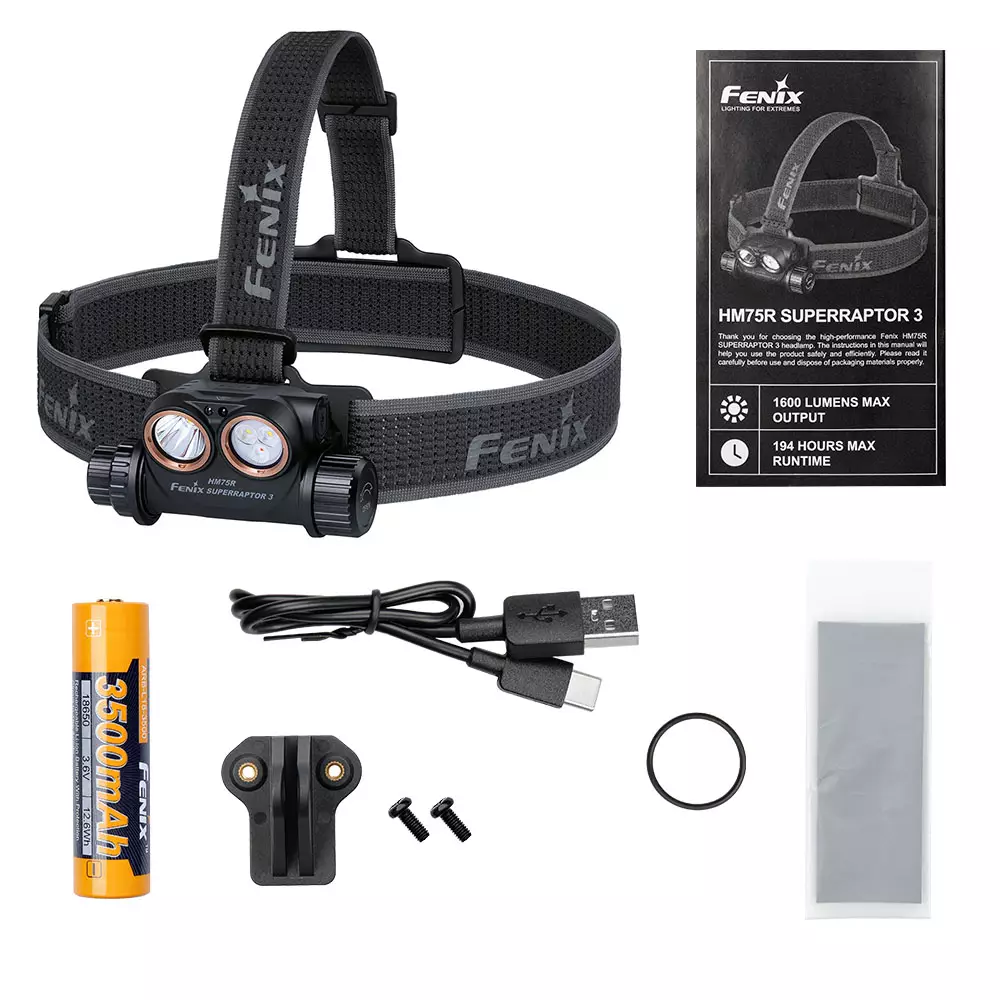

Package Includes: HM75R SUPERRAPTOR 3 headlamp, 3 x attachment tape, ARB-L18-3500, 3500 mAh rechargeable Li-ion battery, USB Type-C charging cable, head and top straps, GoPro mount, headband backplate padding, replaceable O-ring seal, user manual FI, SE, EN, warranty card. Fenix ALG-03 V2.0 helmet mount sold separately
The Fenix brand guarantees exceptional quality; the HM75R SUPERRAPTOR 3 is fully IP68 dust and waterproof. All Fenix flashlights are tested in their own laboratory according to the American ANSI/FL1 standard.
The HM75R SUPERRAPTOR 3 headlamp comes with a five (5) year warranty (battery 1 year).
Technical Specifications:
Light output (max) 1600 lumens
Runtime (max) 194 h (lowest light level)
Beam distance (max) 218 meters
Luminous intensity (max) 11923 candela
Impact resistance 2 meters
Waterproof rating IP68 (fully dust and waterproof)
Operating modes 4 pcs + 3 pcs red light mode
Spotlight: Turbo 1600 lm / 2 h* / 218 m / 11923 cd
Spotlight: High 800 lm / 4 h / 150 m / 5656 cd
Spotlight: Mid 250 lm / 11 h 42 min / 82 m / 1677 cd
Spotlight: Low 50 lm / 52 h / 38 m / 352 cd
Floodlight: Turbo 1600 lm / 2 h* / 94 m / 2207 cd
Floodlight: High 800 lm / 4 h / 58 m / 855 cd
Floodlight: Mid 250 lm / 8 h 18 min / 34 m / 287 cd
Floodlight: Low 5 lm / 194 h / 5 m / 7 cd
Combination: Turbo 1600 lm / 2 h* / 172 m / 7350 cd
Combination: High 800 lm / 4 h / 111 m / 3085 cd
Combination: Mid 250 lm / 12 h 12 min / 52 m / 676 cd
Combination: Low 50 lm / 50 h 24 min / 26 m / 169 cd
Red Light: High 120 lm / 5 h 49 min / 24 m / 144 cd
Red Light: Mid 30 lm / 34 h / 9 m / 21 cd
Red Light: Low 2 lm / 160 h / 4 m / 5 cd
LED type 1 x SST40 white LED, 2 x SST20 LED, 1 x OSRAM GR QSSPA red LED
Dimensions 91.1 x 41 x 53.5 mm
Weight 172.6 g (battery included)
Power supply 1x18650/2xCR123A
Charging method USB-C
Charging time 3 hours (0 - 100%)
Charging current Max. 5V 2000 mA
Approvals ANSI/NEMA FL-1, ROHS, CE
Warranty 5 years
Included items: HM75R SUPERRAPTOR 3 headlamp, ARB-L18-3500, 3500 mAh rechargeable Li-ion battery, USB Type-C charging cable, head and top straps, GoPro mount, headband backplate padding, replaceable O-ring seal, user manual FI, SE, EN, warranty card.
Manufacturer: Fenix Nordics
Country of Origin: Far East
