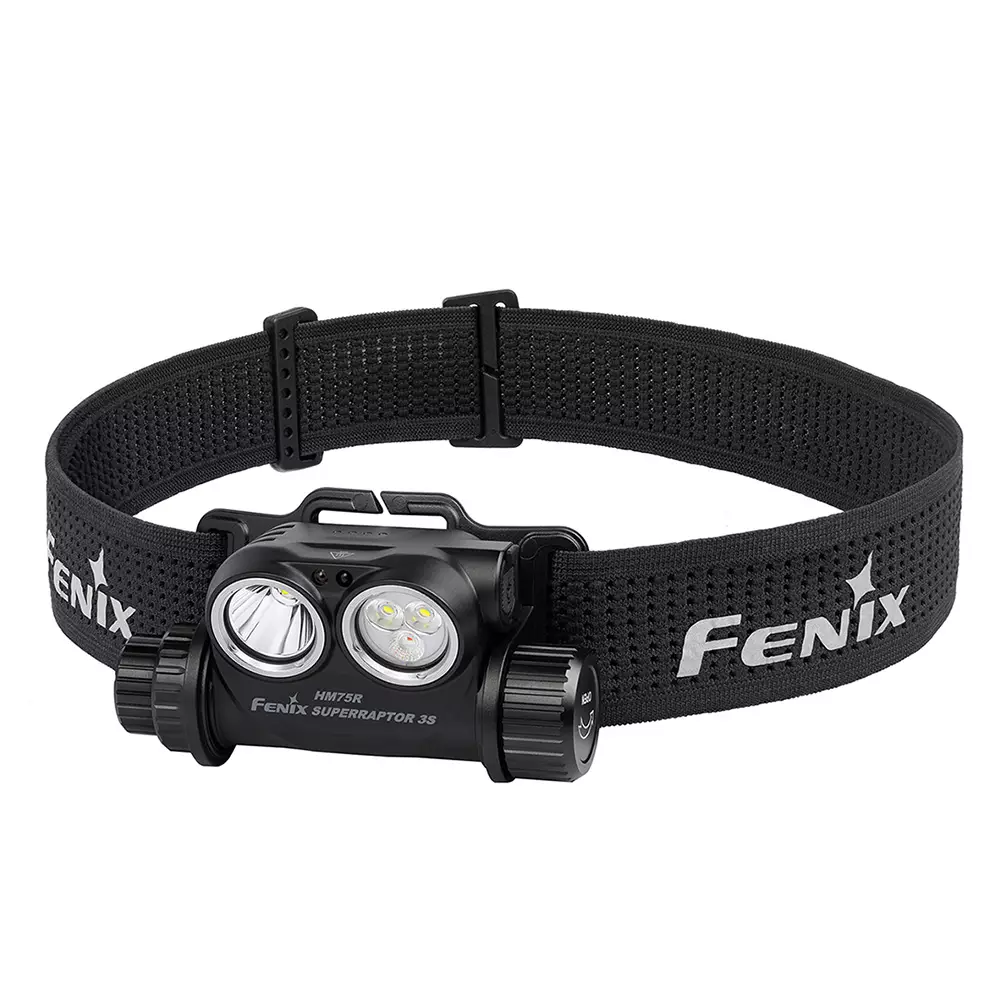

Fenix HM75R SUPERRAPTOR 3S Headlamp, 1800 lm. SUPERRAPTOR 3S – the best SUPERRAPTOR ever!
Introducing the new 3S version of the award-winning headlamp!
A Design from Finland product
1800 lm brightness – 20% longer usage time – 4000 mAh battery
Red light – 2 lm tactical mode – 30 lm and 120 lm camping modes
Ultra-lightweight magnesium construction
Up to 447 hours of operation with the POWER EXTENDER!
The new Fenix SUPERRAPTOR 3S is even stronger and shines longer than ever before. It offers an impressive 1800 lumens, with up to 20% longer battery life than its predecessor, and is equipped with the market's most powerful 4000 mAh 18650 battery. This headlamp raises the bar to a new level.
This makes the SUPERRAPTOR 3S the most versatile headlamp for demanding conditions. It is designed for hikers, professional users, cyclists needing a helmet light, and authorities requiring powerful illumination, durability, red light for special situations, and long battery life. The perfect choice for those who demand nothing less than the best.
Test Winner – now even better
The new SUPERRAPTOR 3S continues the successful legacy of the legendary SUPERRAPTOR 3 model. The predecessor received top ratings in both RETKI magazine’s extensive headlamp test and the METSÄSTYS JA KALASTUS magazine, praised specifically for its superior brightness, long beam distance, and versatility in various activities – from hiking and trekking to hunting and professional applications. Testers highlighted the three different modes of red light, as well as the rotary switch that simplifies usage in cold conditions.
Design from Finland
The SUPERRAPTOR 3S has been awarded the Design from Finland mark by the Finnish Association of Work. It has been designed in Finland based on the wishes of thousands of users, tested in harsh conditions, and developed over two years. The result is one of the best headlamps in its class worldwide.
Perfect illumination for all distances
The SUPERRAPTOR 3S is equipped with two distinct types of light: a strong, focused beam that reaches far and a wide area floodlight. These can be used separately or simultaneously to achieve both long-range and broad coverage at the same time. Additionally, the lamp features an effective red light with three brightness levels (2 lm, 30 lm, and 120 lm). The advantage of red light is that it preserves night vision, allowing the eyes to adjust better to darkness without glare – making it an excellent choice for nocturnal wildlife observation, hiking, or situations where discreet illumination of the environment is desired.
Red light preserves night vision – precise and unobtrusive illumination
The red light of the SUPERRAPTOR 3S is designed to support stealth in darkness and is well-suited for demanding military and reserve situations. The lamp offers three different red light brightness levels: dim 2 lumens that is especially suitable for authority and military use, along with brighter 30 and 120 lumen modes that provide sufficient illumination for activities such as hunting, wildlife observation, or photography. The advantage of red light is that it does not cause glare or compromise the eyes' sensitivity in the dark, ensuring that vision remains natural even after illuminated use.
Easy to operate – even with gloves on
With a revamped light mode arrangement, mechanical rotary switch, and electronic push-button switch, the lamp is easier to use even in cold conditions. Brightness levels are automatically saved.
Two power modes - choose what suits you
The HM75R SUPERRAPTOR 3S headlamp features two power modes that determine how to utilize the battery’s energy. This allows you to choose whether to maximize runtime or brightness!
Energy Saving Mode (default choice): This energy mode extends usage time, offering longer runtime by emphasizing durability rather than constant high brightness.
Power Mode: This brightness mode allows for prolonged use at higher brightness levels, ideal for situations where brightness is more critical than runtime.
Safe Operation
The SUPERRAPTOR 3S automatically adjusts brightness when the illuminated object is nearby. This prevents overheating of surfaces and makes usage safer.
Compatible with all helmets
The HM75R SUPERRAPTOR 3S can be attached to all helmets, such as bike and work helmets, using the separately purchased Fenix ALG-03 V2.0 helmet mount. For authority and military helmets, we recommend the ALG-04 helmet mount. Quick-release straps make changing attachments quick and easy.
Cost-effective usage
The SUPERRAPTOR 3S utilizes a standard 18650 Li-ion battery, now with an even more efficient 4000 mAh version. Additionally, the lamp can operate on CR123A batteries, ensuring reliability in emergencies and extreme cold, down to -40°C (NOTE! The included Fenix ARB-L18-4000 Li-ion battery functions reliably down to -20°C).
Want to maximize the performance of the SUPERRAPTOR 3S?
The separately available POWER EXTENDER auxiliary power source extends runtime up to 447 hours and ensures that the light does not shut off at critical moments. Furthermore, it serves as a convenient backup power source for other USB-C devices, such as phones or GPS – the perfect accessory for expeditions, work, and emergency situations.
Product Information (Updated)
Max Brightness: 1800 lumens
Max Beam Distance: 230 meters
Max Runtime: 240 h (5 lm power mode)
Battery: extra large 4000 mAh 18650 Li-ion battery
Spotlight, Floodlight, Combination Light
Red Light: 2 lm, 30 lm, 120 lm
IP68 rated (dust and waterproof up to 1.5 meters)
USB-C charging (waterproof)
Material: ultra-light and durable magnesium
Reflective headband, fits head circumference 50.5–64.5 cm
Design from Finland product
Five (5) year warranty (battery 1 year)
Package includes: HM75R SUPERRAPTOR 3S headlamp, Fenix ARB-L18-4000, 4000 mAh rechargeable Li-ion battery, USB Type C charging cable, head and top straps, padding for head strap backing plate, replaceable O-ring seal, user manual in FI, SE, EN, warranty card.
The Fenix brand guarantees top quality; the HM75R SUPERRAPTOR 3S is fully IP68 dust and waterproof. All Fenix lights are tested in their own laboratories according to the American ANSI/FL1 standard. The HM75R SUPERRAPTOR 3S headlamp carries a five (5) year warranty (battery 1 year).
Technical Specifications:
Max Brightness1800 lumens
Max Runtime240 h (5 lm)
Max Beam Distance230 meters
Max Brightness13320 candelas
Impact Resistance2 meters
Water ResistanceIP68 (completely dust and waterproof)
Operating Modes4 pcs + 3 pcs red light mode
Spotlight: turbo1800 lm / 2 h 49 min* / 230 m / 13320 cd (power mode)
Spotlight: high800 lm / 3 h 28 min / 143 m / 5144 cd (power mode), 800 lm / 4 h 45 min / 143 m / 5144 cd (energy saving mode)
Spotlight: medium250 lm / 13 h / 79 m / 1563 cd (power mode), 250 lm / 13 h 40 min / 79 m / 1563 cd (energy saving mode)
Spotlight: low50 lm / 42 h / 36 m / 320 cd
Floodlight: turbo1600 lm / 2 h* 21 min / 97 m / 2376 cd
Floodlight: high800 lm / 3 h 20 min / 57 m / 830 cd (power mode), 800 lm / 5 h 14 min / 57 m / 830 cd (energy saving mode)
Floodlight: medium250 lm / 6 h 44 min / 34 m / 287 cd (power mode), 250 lm / 10 h / 34 m / 287 cd (energy saving mode)
Floodlight: low5 lm / 240 h / 5 m / 5 cd
Combination: turbo1600 lm / 2 h 39 min* / 184 m / 8453 cd
Combination: high800 lm / 3 h 45 min / 107 m / 2888 cd (power mode), 800 lm / 5 h 53 min / 107 m / 2888 cd (energy saving mode)
Combination: medium250 lm / 13 h / 51 m / 639 cd (power mode), 250 lm / 14 h 20 min / 51 m / 639 cd (energy saving mode)
Combination: low50 lm / 42 h / 25 m / 169 cd
Red Light: high120 lm / 6 h 6 min / 24 m / 144 cd
Red Light: medium30 lm / 22 h 33 min / 9 m / 21 cd
Red Light: tactical2 lm / 210 h / 4 m / 5 cd
LED Type1 x SST40 Gen2 white LED, 2 x SST20 LEDs, 1 x OSRAM GR QSSPA red LED
Dimensions91.1 x 41 x 53.5 mm
Weight172.6 g (battery included)
MaterialUltra-light magnesium
Power Source1x18650 (included)/2xCR123A (sold separately)/POWER EXTENDER auxiliary power supply (sold separately)
Charging MethodUSB-C
Charging Time3 hours (0 - 100%)
Charging CurrentMax. 5V 2000 mA
CertificationsANSI/NEMA FL-1, ROHS, CE
Warranty5 years
Package ContentsHM75R SUPERRAPTOR 3S headlamp, Fenix ARB-L18-4000, 4000 mAh rechargeable Li-ion battery, USB Type C charging cable, head and top straps, padding for head strap backing plate, replaceable O-ring seal, user manual FI, SE, EN
* The usage time in turbo power mode is continuously used time with light output from 100 - 10 %. Performance values are in accordance with the ANSI/PLATO FL1 flashlight standard.
Manufacturer: Fenix Nordics
Country of Manufacture: Far East
